Paper Color Shade and Gloss Lamination Affect the Prints Color of offset printing

  • Color gamut
  • Development Packaging
  • Gloss lamination
  • Color of Paper
3
ownerPHONGYUT JUNTONG
  • Project categoriesProduct Management
  • Strategic research themesInnovative Materials, Manufacturing and Construction
  • Sub themes-
  • SDG goalsIndustry, innovation, and infrastructure

Table of contents

Executive summary

Objective

The objective of this research was to study the effects of the paper color and gloss lamination on the color prints and the acceptance decisions of the sample group towards the color prints.

Project detail

Process

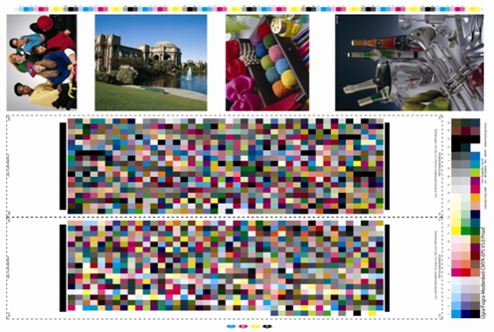

The three different paper colors were selected in this study Paper A was white paper, Paper B was bluishwhite shade paper and Paper C was reddishwhite shade paper. The offset plate with the color test form was made and used to print the samples on the three types of paper which were then taken to gloss laminated on the printed surface. The printed samples on the three types of paper before and after gloss lamination were compared in terms of color value, color gamut, and color difference. In addition, the printed samples were evaluated by a sample group of 30 people.

Result

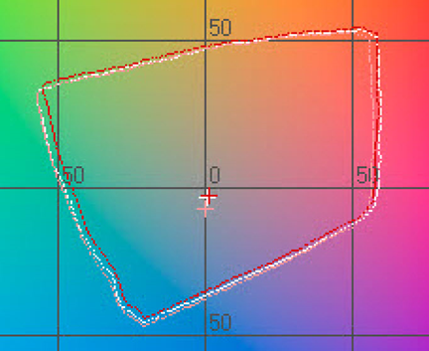

the bluishwhite shade of the paper caused the print image to have wider blue gamut and the reddishwhite shade of the paper also caused the printed image to have wider red gamut. As the gloss lamination on the printed paper increased the yellow gamut and most affected the green area of the prints. The printed image on Paper A both before and after gloss lamination gave minimal color differences.

Location

Bangkok

Team

Members

  • avatar thumbnail

    PHONGYUT JUNTONG

    Project owner
    Lecturer - สาขาวิชาเทคโนโลยีการพิมพ์และบรรจุภัณฑ์, KMUTT
